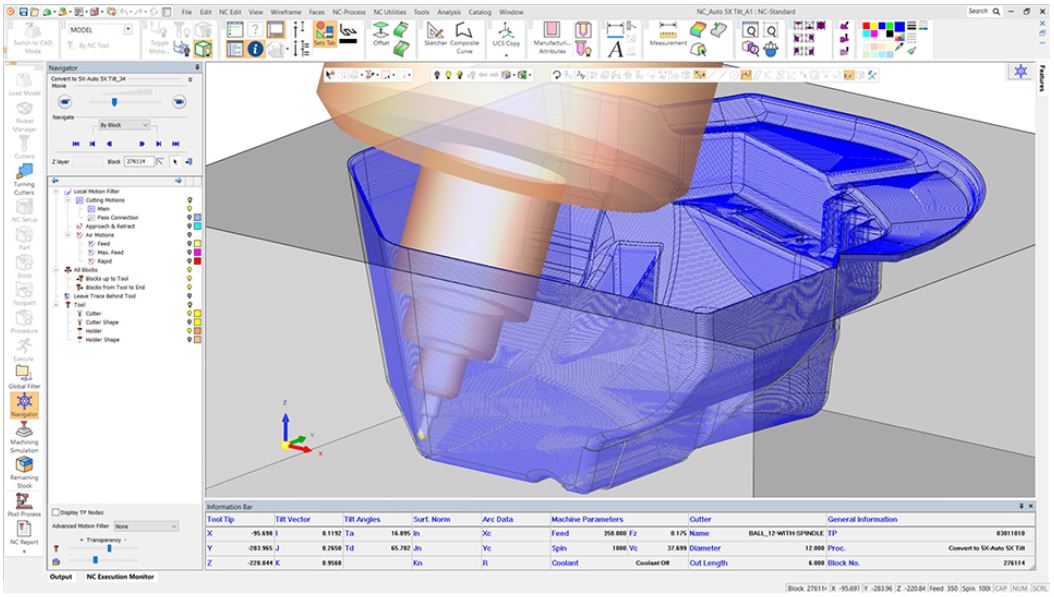

5-axis auto tilt

5-axis auto tilting feature has been significantly enhanced with calculation time improvements of up to 25 times in some cases. This significant boost in efficiency enhances productivity and reduces overall machining time.

A new option for pre-drilling during roughing operations prevents cutters from plunging into blind pockets. Cimatron will automatically define the optimum position and depth for pre-drilling as part of the roughing procedure.

NC SIMUL

Cimatron 2024 includes a new integration to NCSIMUL

Toolpath nodes help predict quality

The ability to display toolpath nodes offers valuable visualization capabilities, aiding CAM users.

Multipoint selection for probing

The On Machine Inspection Probing module now supports multipoint selection.

5-axis auto tilt

For 5-axis machining, the software now allows the automatic use of remaining stock from previous 3-axis operations during roughing.

3-axis deburring

Cimatron 2024 introduces a new 3-axis deburring procedure.

Automatic Feed Control (AFC)

Automatic Feed Control (AFC) for roughing delivers cutting time reductions in excess of 10% on the CNC machine

3D drawbead geometry

Die designers can now easily build 3D drawbead geometry

ImImproved geometric datum and tolerancing (GD&T)

CAD users will enjoy many new features for 2D drafting

Auto selection and chaining of chamfer faces

Cimatron 2024 also introduces a clean new GUI for controlling drafting standards, improved draft analysis visualization, and automated chain selection of chamfer faces.

Drafting/UI

Advanced workflow enhancements including multi-view spacing, batch-processing for drawing updates, tangent control for blending faces, and an easy option for capping internal islands.

CoroPlus® Tool Library connection

Cimatron 2024 places a strong emphasis on digital connectivity.

3D runner design

Within mold design, the construction of 3D runners has been improved
